Oracle BPM Workspace On IOS

iPad Demo for Business Process Management (BPM)

Oracle BPM is now in mobile for IOS
This gave a lot of flexibility for the BPM end users

This the App on  itunes :
https://itunes.apple.com/us/app/oracle-bpm-workspace/id855430935?mt=8

Demo video  :

How to use View Controller ADF Project in another application.

ADF Modality :

How to use ADF  ViewController & ADF  Module projects in another ADF  application,

ADF Framework is supporting the modality by using your  application projects as a recourse could be use in any other ADF Application or Oracle(SOA - BPM - ADF Mobile),

that mean that you can builds your enterprise project from many modules each one is a separate application  with one or more shared project and then gather them in one application.

1.      we will start by build a new ADF application .

2.     build your business layer  by add a BC.

3.     Select your tables in this cause we will use the (Employee , Department).

4.     Configure your AppMpdule  to have one tree the parent will be the Department .

5.     Add a new Task flow

6.     Name your  Task flow

7.     Insert a View and Name it .

8.     Double  click on the view  to create a jsff page

.

9.     Add the department as a ADF Navigation List and the Employee as a table in your jsff page .

10. It will look like this but do not forget  to add the id of the Department list component id to the table partialTriggers.

11. go to the ViewController project and open the project properties and in the Deployment profile add a new profile of type (ADF Library jar file ) and name it .

12. In the profile properties go to connection and chose connection name only

13. After finish  you will have two profiles chose ok.

14. go to the DataBindings.cpx file and copy from the file source the xml tags for the pages content  (<pageMap>) ,(<pageDefinitionUsages>) and the (<dataControlUsages>) if there is  but them in a note or in text file to use them.

15. Delete the  DataBindings.cpx file.

16. Delete the  (<DataBindingRegistry path="view/DataBindings.cpx"/>) tag from the adfm.xml

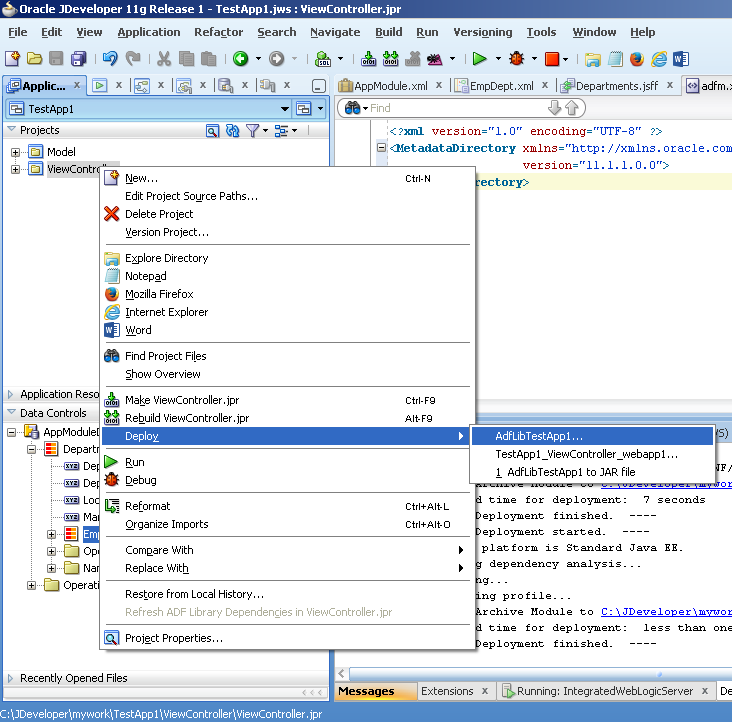

17. Deploy the Model project and save the deployment jar file path.

18. Deploy the ViewController project and save the deployment jar file path

19. Create A new ADF Application and name it .

20. Go to the ViewController Project Properties and select the Libraries and Class path then chose Add jar/Directory to add the deployed jar files from the TestApp1 application you have two jar files one for the Model project and anther one for the ViewController Project add them one by one or together .

21. After add the jar files chose OK .

22. Now create a new jspx page to your application and you can see that the Data control has the same application module from the TestApp1 application .

23. After add the jspx page open the component palette and from the category list you will find a new category with the same name of your TestApp1 ViewController project deployment profile name select it you will find the same task flow that you had create.

24. Drag and drop the Regions task flow (EmpDept) to your page as a Region.

25. Go to the DataBindings.cpx file and past the TestApp1 viewController DataBindings.cpx tags witch you had save in point no(15) .

26. Now run your page you will find the Region Working.

Java SE 7 Fundamentals

Oracle Java SE 7 Fundamentals Ed 2 Course  Materials

https://www.dropbox.com/s/8rjw5vmadn74rc6/D67234GC20_ep.zip?dl=0

https://www.dropbox.com/s/uniqzfisxj61v7r/D67234GC20_ppt.zip?dl=0
